The TeraFlex JK: HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.
The TeraFlex JK: HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.

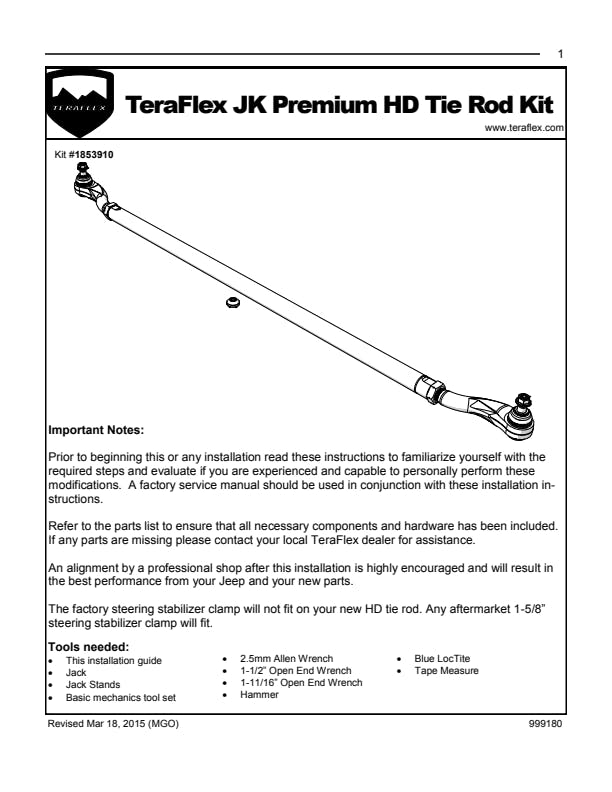

- Installation does not require any cutting or removal of factory bracketry HD Chromoly Tie Rod Kit (# 1853910)
- Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160) Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
- Fits heavy-duty 1-5/8" tie rod
- 6061-T6 aluminum clamp and forged 10.9 grade stud
- Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body
- Repositions stabilizer to reduce ?tie rod roll" associated w/ stabilizer misalignment
- HD 1-5/8" O.D. 4140 heat treated chromoly steel
- More than 200% stronger than factory tie rod
- Forged tie rod housing designed specifically for JK Wrangler/Unlimited
- Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
- Features adjustable rod end preload tension to ensure long-term durability
- The joint is pressed into the rod end housing and secured w/ a snap ring
- Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
- Provides clearance for factory 17" wheels
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
| Attributes |
| California Proposition 65 |
Yes |
| Country of Origin (Primary) |
CN |
| GTIN |
00843885033271 |
| Harmonized Tariff Code (Schedule B) |
8708998175 |
| Hazardous Material Code |
N |
| Included Parts |
HD Chromoly Tie Rod, Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160), All necessary hardware |
| Install Time |
1.5 hours |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
