UT3000 Winch; 3000 lbs; 12 Vdc; 3/16 In X 40 ft Steel Rope; Circuit Breaker; Remote Control; 1.2 hp; Dynamic Brake; 1-Stage Planetary; 153:1 Gear Ratio; 4-Way Roller Fairlead;
The Superwinch UT3000 Winch provides 3,000 lbs of pulling capacity, freespool control and cable tensioner to keep your cable wrap tight. Controller and roller fairlead on a mount plate makes this winch a great choice for simple jobs around the house or worksite.
- Rated Line Pull Of 3000 Lbs
- 1.2 Hp Permanent Magnet Motor Provides Dynamic Braking
- 1-Stage Planetary Gearing With 153:1 Ratio
- Circuit Breaker Protected
- Free-Spooling Pull And Turn Clutch
- Wire Rope Measures 3/16 In. X 40 Ft.
- Clevis Pinned Hook
- Zinc Plated 4-Way Fairlead
- 12 Ft. Wired Hand-Held Remote
Application Summary:
| Year |
Make/Model |
| 000 |
lbs |
| 12 |
VDC |
| 3/16 |
in x 40 ft steel rope |
| circuit |
breaker protected |
| 12 |
ft handheld remote control |
| 1.2 |
Hp |
| dynamic |
brake |
| 1-stage |
planetary |
| 153:1 |
gear ratio |
| 4-way |
roller fairlead |
| Attributes |
| Brake System |
Dynamic |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery |
Yes |
| Clutch |
Free-Spooling, Pull and Turn |
| Country of Origin (Primary) |
CN |

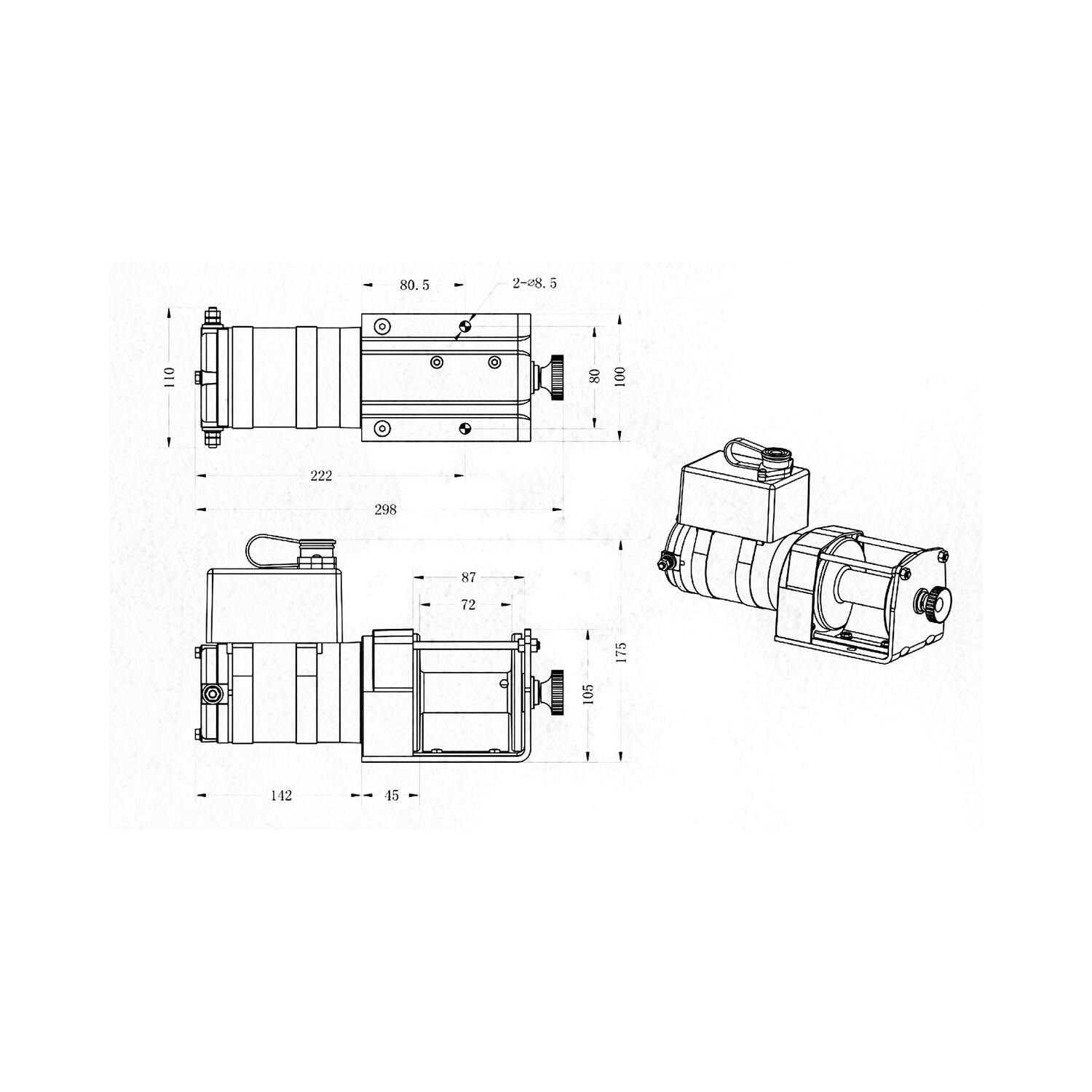

| Dimensions |
12.0in L x 7.5in D x 7.0in H (304.8mm L x 190.5mm D x 177.8mm H) |
| Drum Diameter (in.) |
1.25 |
| Drum Length (in.) |
2.83 |
| EN Compliant |
No |
| Fairlead Type |
4-Way Roller |
| Finish/Color |
Black |
| Freight Class |
60 |
| GTIN |
00022705002721 |
| Gear Ratio |
153:1 |
| Gear System |
1-stage planetary |
| Harmonized Tariff Code (Schedule B) |
8708295170 |
| Hazardous Material Code |
N |
| Hook |
Removable Clevis Pinned |
| Horsepower |
1.2 |
| Life Cycle Status Code |
Available to Order |

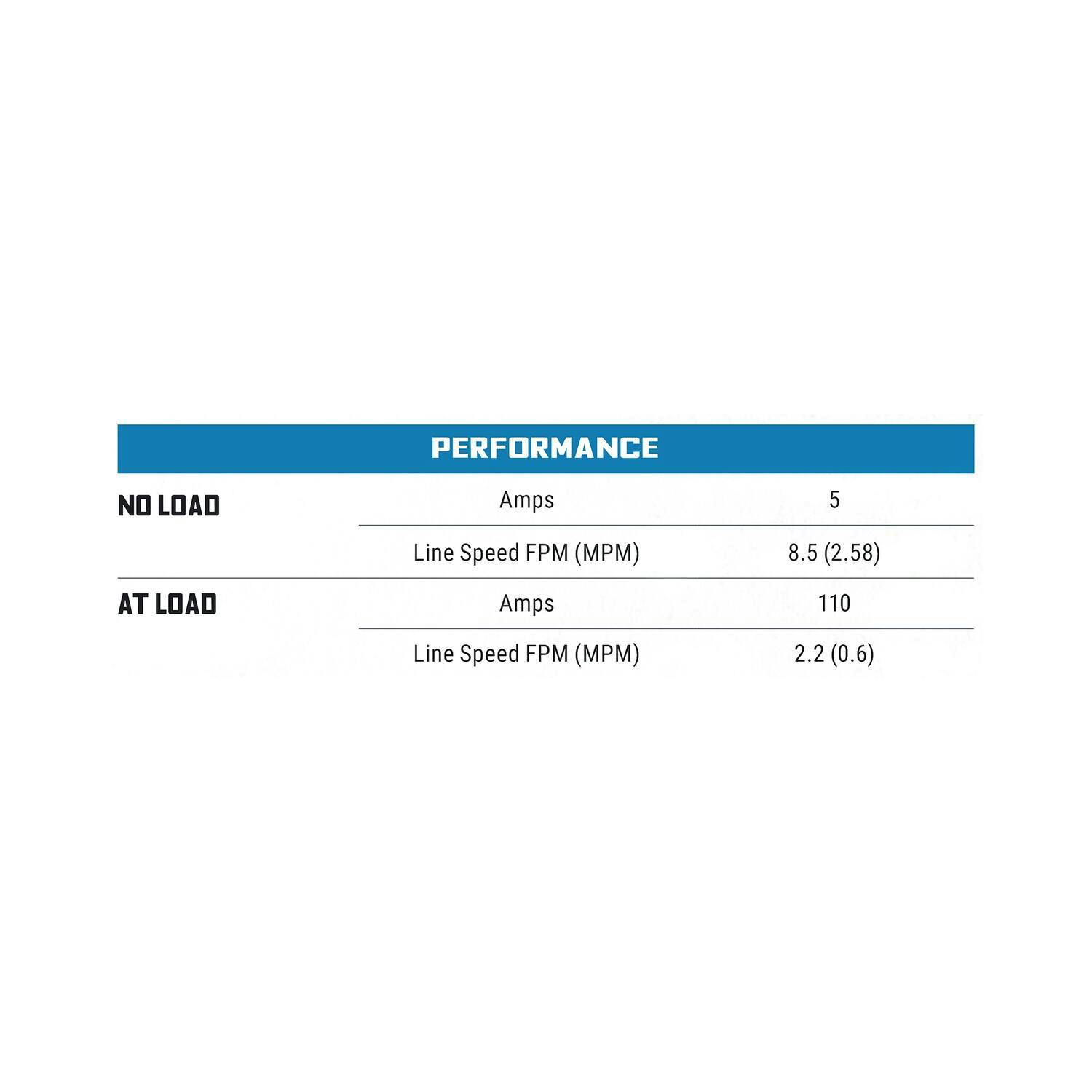

| Line Speed |
5 Amps Motor Draw/8.5 FPM (2.58 MPM) |
| Marketing Status |
Current |
| Motor Type |
12V DC |
| Mounting Bolt Pattern |
2 Hole, 3.15in (80mm) on Center |
| NAFTA Preference Criterion Code |
B |
| Rated Single Line Pull (Lbs) |
3000 |
| Rated Single Line Pull (lbs.) |
3000 |
| Remote |
12ft Rubber Hand-held |
| Rope Length |
3/16 in x 40 ft |
| Rope Material |
Steel Wire |
| SDR Required Flag |
N |
| Solenoid |
Circuit Breaker Protected |
| Superwinch WEB Title |
UT3000 Winch with Steel Wire Rope |
| Type |
Automotive |
| Voltage |
12 DC |
| Winch Color |
Black |
| Winch Dimension (IN) |
12.0 x 7.5 x 7.0 |
