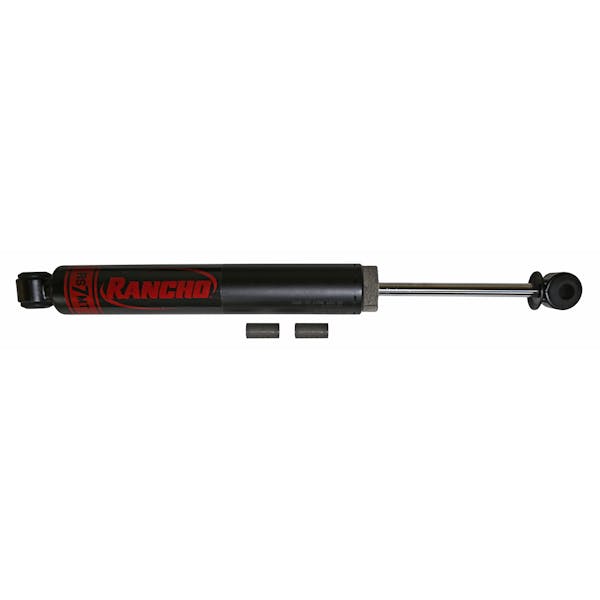

Rancho RS77113 RS7MT Suspension Shock Absorber
Rancho RS7MT RS77113 Suspension Shock Absorber for Jeep Wrangler
Application tuned for precision on-road and off-road handling, Rancho RS7MT™ monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
  • PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
  • STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs and corrosion, double-welded loops at stress areas, double-strength closure method, and hot form reserve tube
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
  • SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness, while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
  • KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
  • BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, shock boot RS1952 and RS1961 are available for purchase
  • BOLD APPEARANCE-- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out

Application Summary:

Year Make/Model
1969-1972 Chevrolet Blazer
1987-1991 Chevrolet Blazer
1975-1995 Chevrolet G10
1970-1974 Chevrolet G10 Van
1975-1995 Chevrolet G20
1970-1974 Chevrolet G20 Van
1975-1991 Chevrolet G30
1970 Chevrolet G30 Van
1981-1986 Chevrolet K10
1981-1986 Chevrolet K10 Suburban
1981-1986 Chevrolet K20
1981-1986 Chevrolet K20 Suburban
1981-1986 Chevrolet K5 Blazer
1975-1982 Chevrolet LUV
1972-1974 Chevrolet Luv Pickup
1987 Chevrolet V10
1987-1988 Chevrolet V10 Suburban
1989-1991 Chevrolet V1500 Suburban
1987 Chevrolet V20
1987-1988 Chevrolet V20 Suburban
1989-1991 Chevrolet V2500 Suburban
1975-1980 Dodge B100
1971-1974 Dodge B100 Van
1981-1994 Dodge B150
1995-1998 Dodge B1500
1975-1980 Dodge B200
1971-1974 Dodge B200 Van
1981-1994 Dodge B250
1995-1998 Dodge B2500
1975-1980 Dodge B300
1971-1974 Dodge B300 Van
1981-1994 Dodge B350
1995-1998 Dodge B3500
1995-2003 Dodge Ram 1500 Van
1996-2003 Dodge Ram 2500 Van
1996-2003 Dodge Ram 3500 Van
1966-1979 Ford Bronco
1961-1965 Ford F-100
1961-1964 Ford F-250
1975-1978 GMC G15
1970-1974 GMC G15/G1500 Van
1979-1995 GMC G1500
1975-1978 GMC G25
1970-1974 GMC G25/G2500 Van
1979-1995 GMC G2500
1975-1978 GMC G35
1970-1974 GMC G35/G3500 Van
1979-1991 GMC G3500
1970-1972 GMC Jimmy
1981-1991 GMC Jimmy
1981-1986 GMC K1500
1981-1986 GMC K1500 Suburban
1981-1986 GMC K2500
1981-1986 GMC K2500 Suburban
1987 GMC V1500
1987-1991 GMC V1500 Suburban
1987 GMC V2500
1987-1991 GMC V2500 Suburban
1961-1971 International Scout
1971-1980 International Scout II
1975 International Travelall
1991-1995 Isuzu Pickup
1959-1966 Jeep CJ3
1959-1975 Jeep CJ5
1982-1983 Jeep CJ5
1966-1968 Jeep CJ5A
1959-1975 Jeep CJ6
1966-1968 Jeep CJ6A
1976-1986 Jeep CJ7
1969-1973 Jeep Commando
1972-1974 Jeep DJ5
1962-1969 Jeep Gladiator
1984-1991 Jeep Grand Wagoneer
1963-1973 Jeep J-100
1963-1965 Jeep J-200
1963-1965 Jeep J-210
1963-1965 Jeep J-220
1963-1965 Jeep J-230
1965-1973 Jeep J-2500
1965-1973 Jeep J-2600
Attributes
Adjustable Damping No
Air Adjustable No
Air Ride Suspension No
Bearing Plate Included No
Body Diameter 1.97
Body Length 12.91, 327.9, 327.9
California Proposition 65 No
Coil Over Springs Included No
Compressed Bumper Stop No
Compressed Length 13.9
Country of Origin (Primary) PL
Dust Shield Included No
Extended Bumper Stop Yes
Extended Hydraulic Lockout No
Extended Length 20.59
GTIN 00039703012027
Harmonized Tariff Code (Schedule B) 8708801600
Hazardous Material Code N
Internal Construction Type Single Tube
Life Cycle Status Code Available to Order
Lower Mount Code L1
Lower Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code L1
Lower Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
New Or Remanufactured New
Part Description Shock Absorber
Parts Pack P00916
Parts Pack(s) P00916
Reserve Tube Diameter 1.97
Rod Diameter 0.5511811023622047
SDR Required Flag Y
SDS Sheet Number 01164
Shock Absorber Bore Size 1.8110236220472442
Spring Included No
Spring Isolators Included No
Spring Seat Included No
Upper Mount Code L1
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code L1
Upper Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
