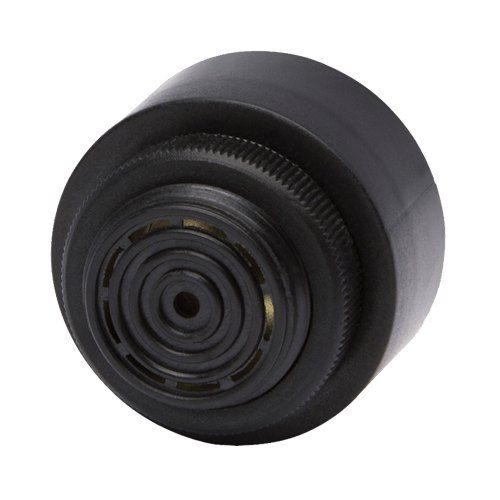

This Audible Signaling Device is a Tonal Alarm with a Fast Pulse signal at 80 dBA. It features a piezo electronic design that creates a low amp draw and a Panel Mount that is easy to install.

---

Warning device intended for in-cab use, panel mounts in 1.25" hole. Piezo electronic design provides very low amp draw.

• 80 dBA; Panel Mount; 1.25" hole; 1.3"H x 1.7"D; Fast pulse signal; Approvals: RU, UL; Nominal Voltage: 12V-48V DC; Extreme Voltage: 9.0V-56.0V DC; Peak Current: 0.1 amps; Max Power: 2.0W; Frequency: 2900Hz; ABS Housing Material.

---

Information:

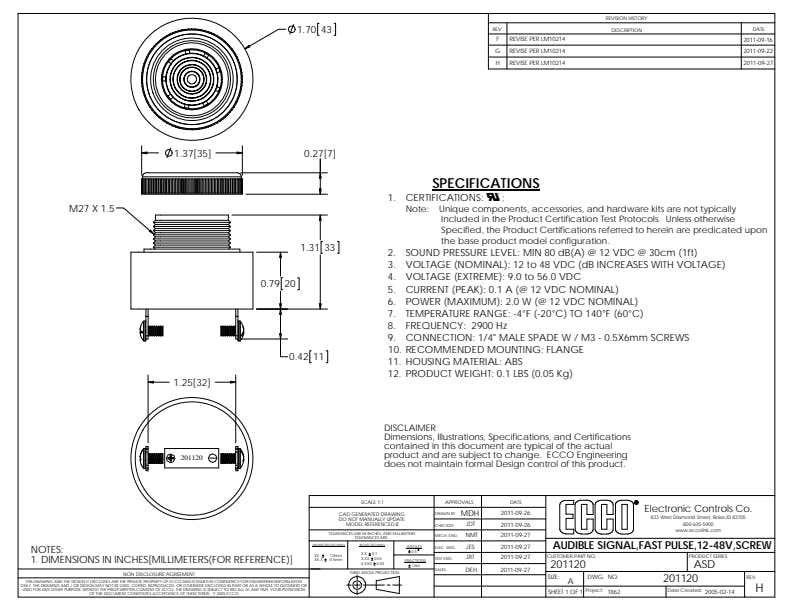

Audible Signal Device; 80 dBA; Panel Mount; 1.25" hole; 1.3" height x 1.7" depth; Fast pulse signal; RU Certification and UL approval rating; Sound Pressure Level: MIN 80 dBA @ 12V DC @ 30cm (1ft); Nominal Voltage: 12V to 48V DC (dB increases with voltage); Extreme Voltage: 9.0V to 56.0V DC; Peak Current: 0.1 amps (@ 12V DC Nominal); Max Power: 2.0W (@ 12V DC Nominal); Temperature Range: -4°F (-20°C) to 140°F (60°C); Frequency: 2900Hz; Connection: 1/4" Male Spade with M3 Screws (0.5 x 6mm); Recommended Mounting: Flange; Housing Material: ABS; Product Weight: 0.1lb (0.05 kg).
