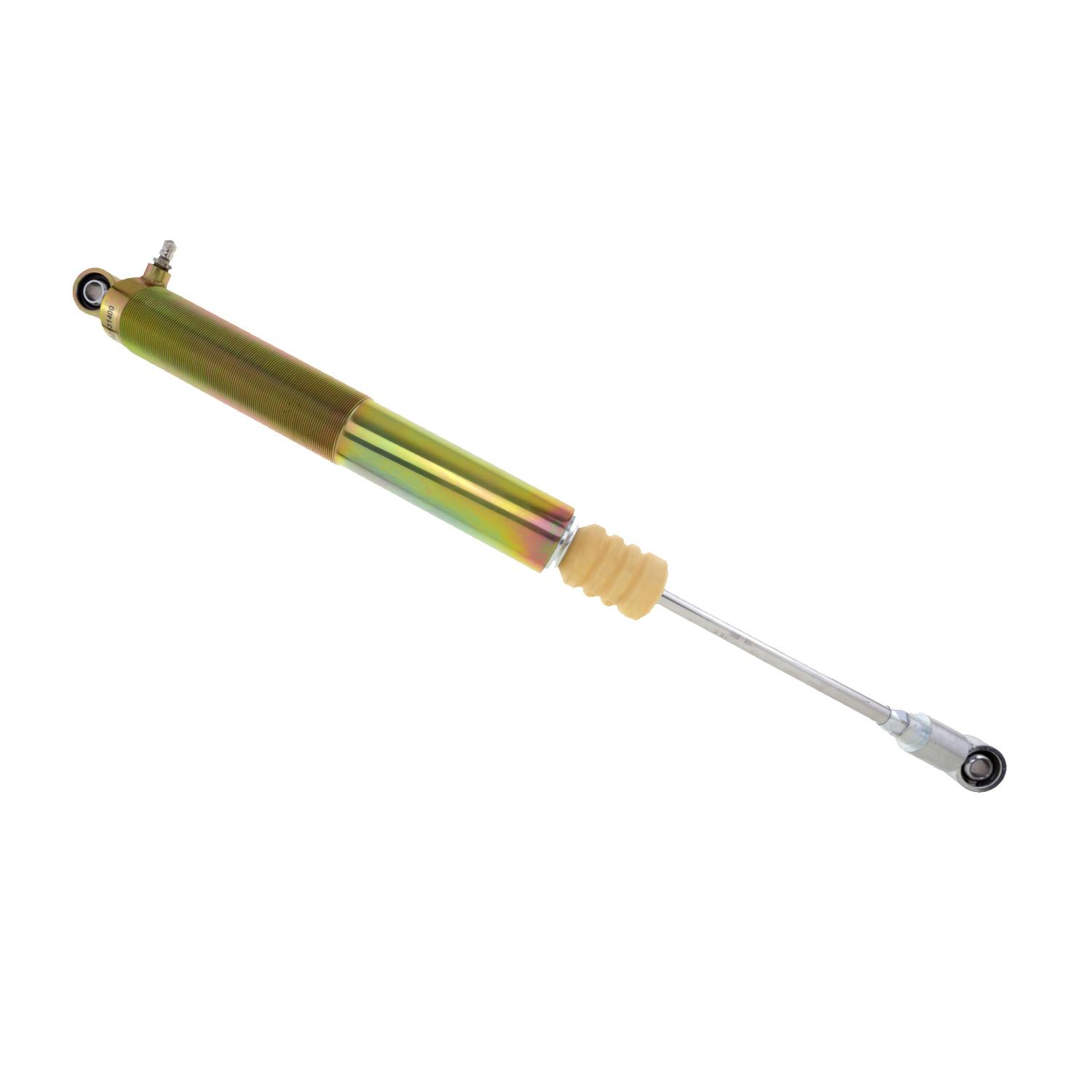

46mm Monotube Shock Absorber
Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Application Summary:
| Year |
Make/Model |
| No |
Applications |
| Attributes |
| Body Design |
Threaded Body (Coilover) |
| Body Diameter (ID) |
46mm |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
17.44 |
| Collapsed Length (IN) Rounded |
17 |
| Collapsed Length (MM) |
443.0 |
| Compression @0.52m/s |
1000 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
26.65 |
| Extended Length (IN) Rounded |
27 |
| Extended Length (MM) |
676.9 |
| Finish |
Nickel Plated with Clear Powder Coat |
| GTIN |
00790832512528 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
1/2in Heim |
| Mount Type |
Eye-to-Eye |
| Optional Reservoir Clamp |
N/A |
| PartType |
Shocks / Struts |
| Rebound @0.52m/s |
2550 |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
M 7100 (Coilover) |
| Spring Hardware |
Single Rate (2.5in) |
| Spring Seat Included |
Yes |
| Upper Mount Type |
1/2in Heim |
| Warranty Time |
3 |
