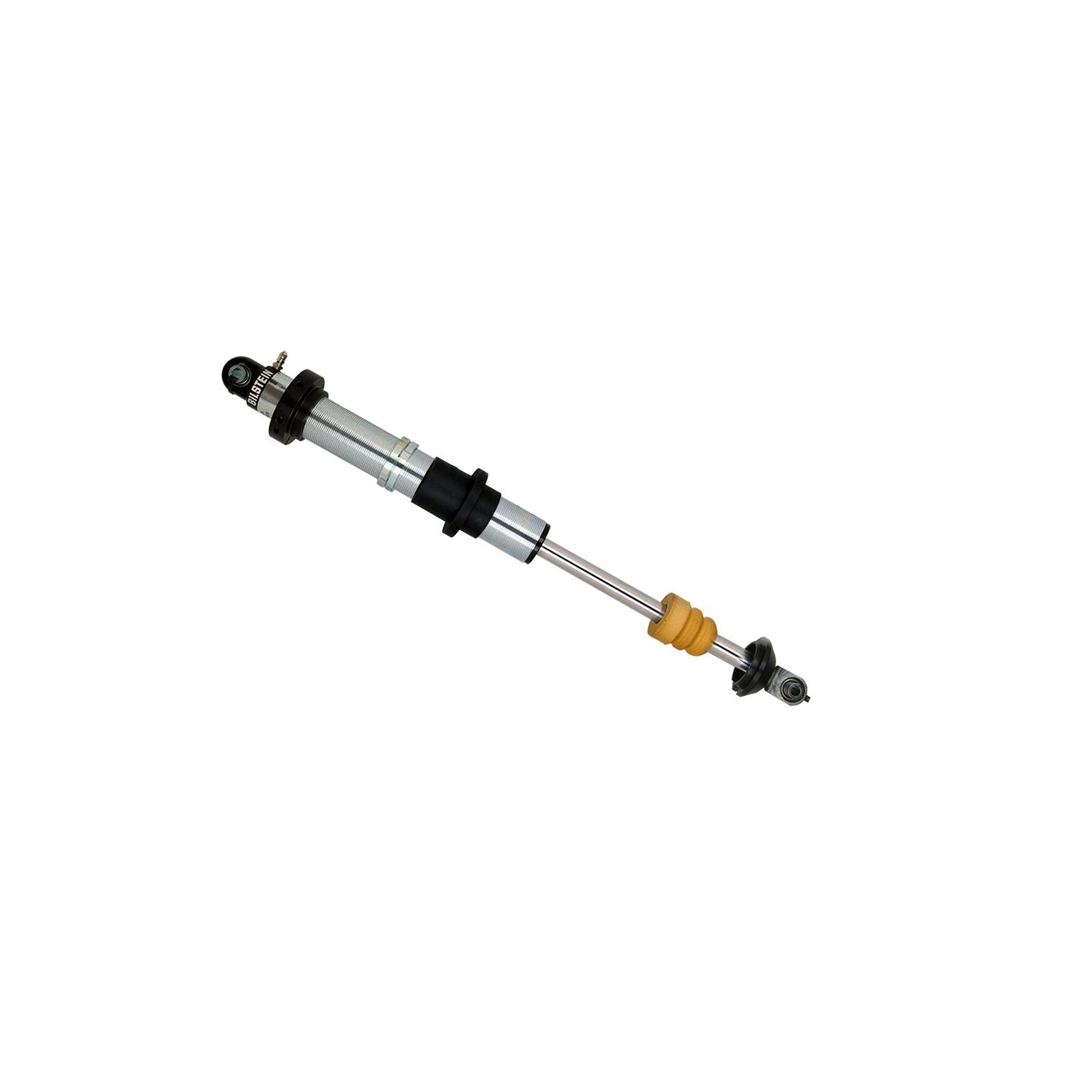

46mm Monotube Shock Absorber
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
Application Summary:
| Year |
Make/Model |
| No |
Applications |
| Attributes |
| Body Design |
Threaded Body (Coilover) |
| Body Diameter (ID) |
46mm |
| Boot Included |
N/A |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
17.00 |
| Collapsed Length (IN) Rounded |
17 |
| Collapsed Length (MM) |
431.8 |
| Compression @0.52m/s |
Coil Carrier No Valving |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
27.00 |
| Extended Length (IN) Rounded |
27 |
| Extended Length (MM) |
685.8 |
| Finish |
Zinc Plated |
| GTIN |
00651860750514 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye .5x1.5in |
| Mount Type |
Eye-to-Eye |
| Optional Reservoir Clamp |
N/A |
| PartType |
Shocks / Struts |
| Rebound @0.52m/s |
Coil Carrier No Valving |
| Reservoir |
Yes |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
M 9200 (Coil Carrier) |
| Spring Seat Included |
No |
| Upper Mount Type |
Eye .5x1.5in |
| Warranty Time |
3 |
