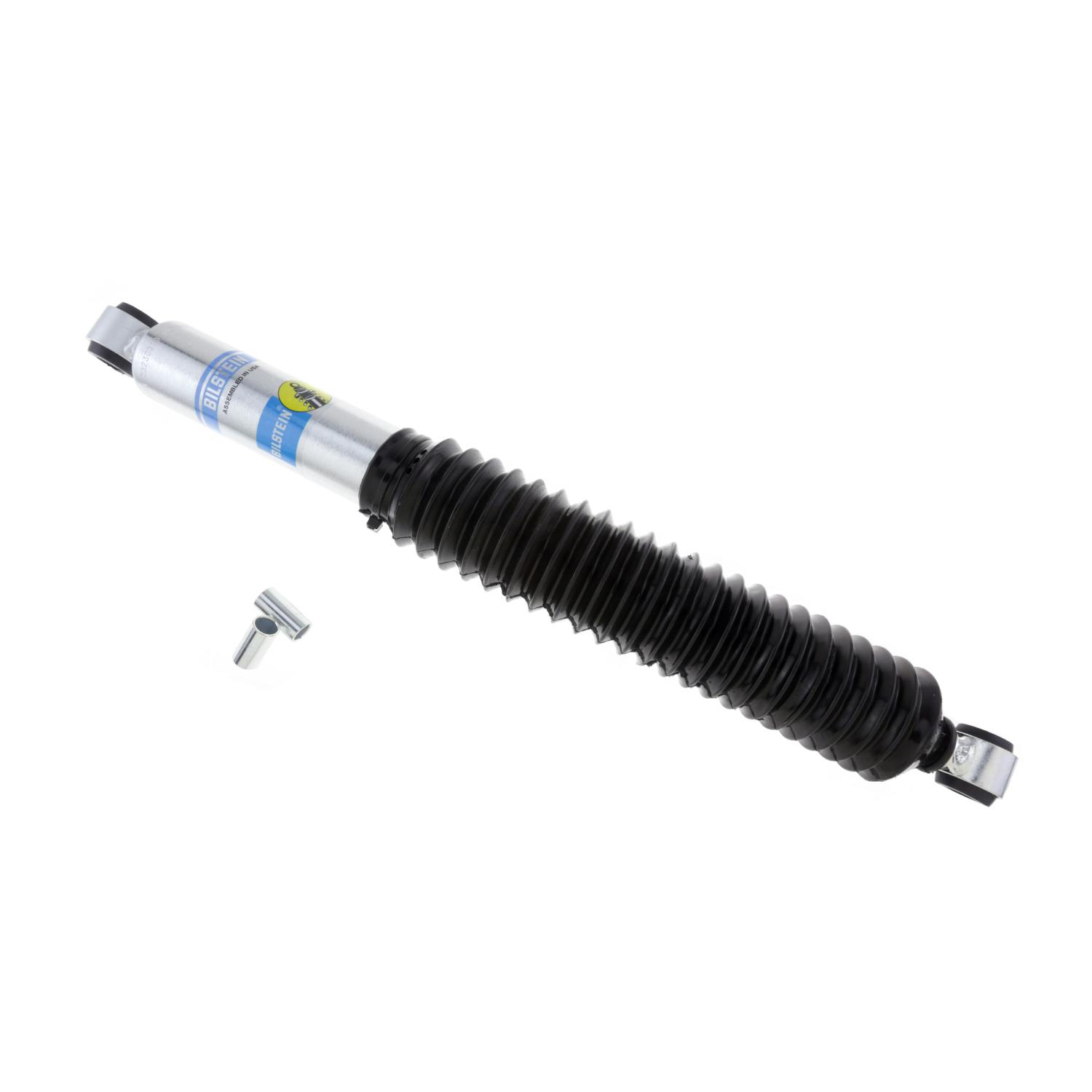

46mm Monotube Shock Absorber
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Application Summary:
| Year |
Make/Model |
| 1976-1983 |
Jeep CJ5 |
| 1976-1986 |
Jeep CJ7 |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Body Design |
Smooth Body (Non-Coilover) |
| Body Diameter (ID) |
46mm |
| Body Diameter (OD) |
2.0 in. |
| Boot Included |
Black Bellows |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
13.66 |
| Collapsed Length (IN) Rounded |
14 |
| Collapsed Length (MM) |
347.0 |
| Compression @0.52m/s |
595 |
| Country of Origin (Primary) |
MX |
| Emission Code |
Legal US |
| Extended Length (IN) |
21.7 |
| Extended Length (IN) Rounded |
22 |
| Extended Length (MM) |
551.2 |
| Finish |
Zinc Plated |
| GTIN |
00651860727349 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 5/8in |
| Mount Type |
Eye-to-Eye |
| PartType |
Shocks / Struts |
| Piston Diameter |
46mm |
| Rebound @0.52m/s |
1810 |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 5125 |
| Shaft Diameter |
14mm |
| Spring Max Travel (IN) |
8.04 |
| Spring Seat Included |
No |
| Stroke/Travel Length (IN) |
8.04 |
| Stroke/Travel Length (mm) |
204.2 |
| Upper Mount Type |
Eye 5/8in |
| Warranty Time |
3 |
