60mm Shock Absorber

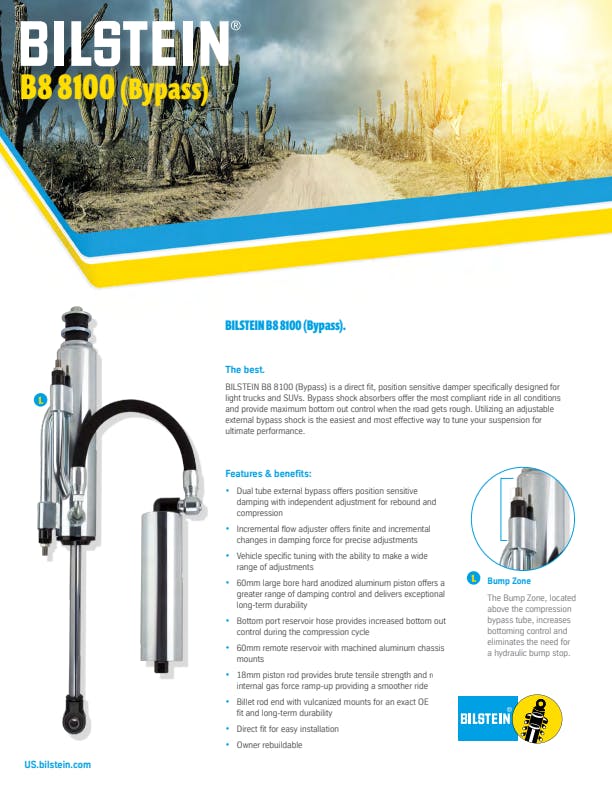

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Application Summary:
| Year |
Make/Model |
| 2007-2014 |
Toyota FJ Cruiser |
| Attributes |
| Adjustable Damping |
Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Body Design |
Bypass Body (Non-Coilover) |
| Body Diameter (ID) |
60mm |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
14.72 |
| Collapsed Length (MM) |
374.0 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
24.09 |
| Extended Length (MM) |
612.0 |
| Finish |
EVO Grey |
| GTIN |
00651860878645 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 19.25mm |
| PartType |
Shocks / Struts |
| Reservoir |
Yes |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 8100 (Bypass) |
| Spring Seat Included |
No |
| Upper Mount Type |
Stem |
| Warranty Time |
24 |
